Autoclave for AAC Plant

Autoclave for AAC Plant

Autoclave for AAC Plant

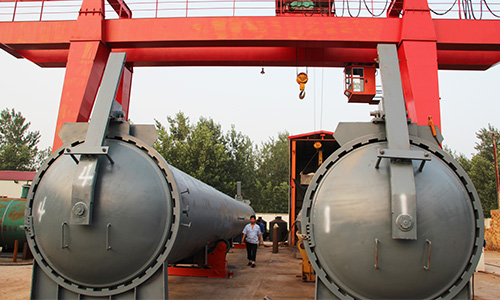

Autoclave for AAC plant is large pressure vessel for steam curing, has excellent thermal insulating quality, and it supporting the use of steam boilers. The autoclave is a horizontal cylinder device, when curing the aerated concrete, there is hydrothermal reaction (CaO-SiO2-H2O) happened in autoclave. It has the advantages of wide applicability, good treat efficiency, large capacity, reasonable layout, and safety operation, etc. Sitong Boiler could design and manufacture various forms of autoclave according to customers’ requirements.

Except AAC plant, the autoclave could also be used for wood preservation, maintenance and steaming of lime-sand brick, fly-ash brick, new light wall material, concrete tubular pile and other building products, moreover, it can used for the products steaming in chemical industry, medicine, rubber, wood corrosion prevention, gypsum, glass, thermal insulation materials, textile, war industry and other area.

1.0-3.8 Mpa

Design Pressure

1.5~3m

Inner Diameter

187/198°C

Working Temperature

Saturated Steam

Working Medium

Performance Advantages

1. High quality materials

The autoclave cover uses monoblock Q345R steel plate for compression moulding, and the flange of autoclave cover and body use Q345R steel plate for integral forgoing, to ensure the high quality.

2. Advanced processing technology

Double-side automatic submerged arc welding are used for the weld joint of autoclave cover head and flange, and then heat treatment and strict nondestructive testing are processed for all weld joint of pressure parts, eliminate forging stress and welding

3. Special and convenient structure

Side open type using the rotating arm type door - opening structure. Flexible rotation, low post operation, simple and convenient opening. Upper open type door using the lever type door-opening structure, lower leverage connect with kettle door, the

4. Safe operation

Equipped with PLC control cabinet and sophisticated safe interlock protection device, utmost avoid the potential wrong operation, to ensure the safe operation.

Technical Parameters

Model Diameter(m) Efficient Length(m) Design Pressure(Mpa) Design Pressure(°C) Working Medium Length×Width×Height
(mm)
Weight(ton)
FGZCS1.0-1.65×21 1.65 21 1.0~1.4 187 Saturation
steam
22650×2619×2695 21.5
FGZCS1.3-2×21 2 21 1.0~1.4 198 23300×2980×3340 24.7
FGZCS1.3-2×27 2 27 1.0~1.4 198 2930×2980×3340 30.5
FGZCS1.3-2×31 2 31 1.0~1.4 198 33300×2980×3340 33.4
FGZCS1.3-2.5×27 2.5 27 1.0~1.4 198 29560×3254×4117 /
FGZCS1.3-2×31 2.5 31 1.0~1.4 198 33560×3254×4117 /
Note: Parameter is for reference only, if any changes should follow the actual drawing






Applicable Industries

Chemical Industry Boiler

Chemical Industry Boiler

Chemical Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Pharmaceuticals Industry

Pharmaceuticals Industry

Pharmaceuticals Industry

Paper Processing Industry

Paper Processing Industry

Paper Processing Industry

Related Products

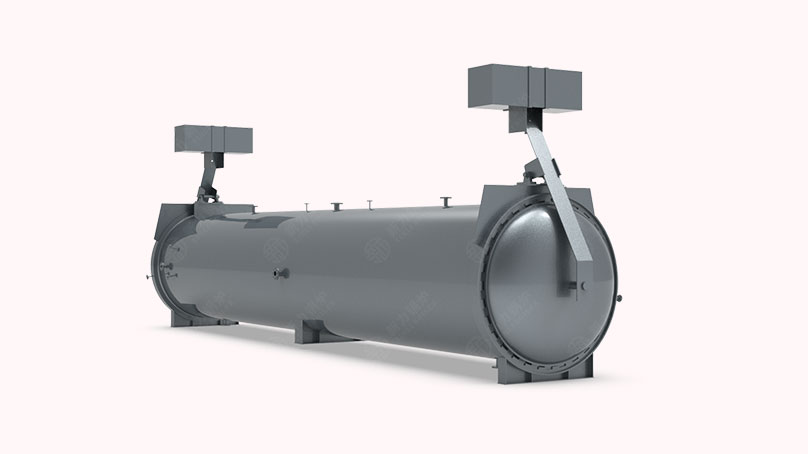

Autoclave for AAC Plant

Autoclave for AAC Plant

Design Pressure

1.0-3.8 Mpa

Autoclave for Wood Preservatio

Autoclave for Wood Preservatio

Autoclave capacity

4~60 m3

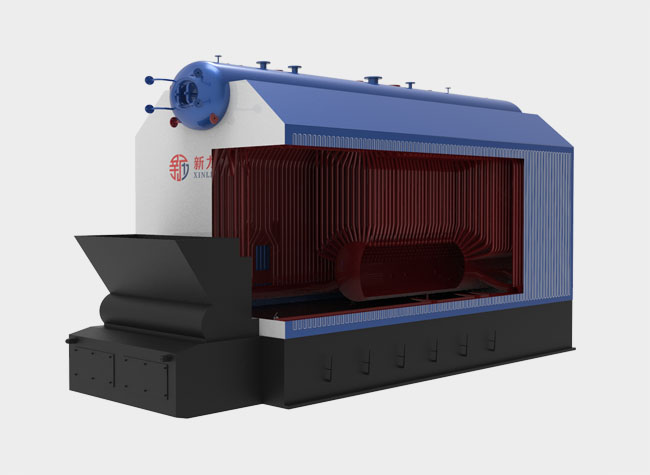

SZL Economizer Type Coal Fired
