DZL Automatic Chain Grate Stoker Boiler

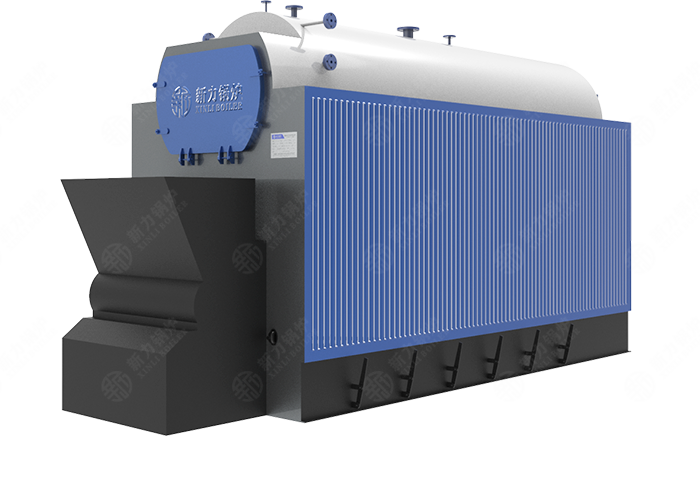

DZL Automatic Chain Grate Stoker Boiler

DZL series biomass fired boiler is single drum water tube and fire tube boiler, combustion equipment is chain grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating area. This boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The drum is welded assembly by cylinder and front back tube plate. This furnace structure in reasonable arrangement and high efficiency. This series boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission requirement.

This boiler could burn different kind biomass fuel, such as wood chips, rice husk, bagasse, peanut shell, cotton shell, coconut shell, etc. Biomass fuel is renewable green energy with a wide range of sources. Biomass energy will gradually replace coal and become one of the main energy sources. Compared with coal-fired boilers, biomass fuels have lower cost and lower operating cost.

0.7MW ~ 7MW

Rated Thermal Power

< 1.6 Mpa

Working Pressure

~ 82%

Thermal Efficiency

Coal, Biomass

Avaliable Fuel

AVAILABLE FUELS



ItemLow Heat Value
II Class Bituminous4500-5000 kcal/kg
Pellet3000-4200
Wood Chip(oak)3830 kcal/kg
Rick Husk2600-3600 kcal/kg
Pale Shell2997 kcal/kg
Coconut Shell3885 kcal/kg
Sawdust3120 kcal/kg
Bagasse1665 kcal/kg
Corn Cobs4241 kcal/kg
bagasse

Bagasse

cassawa

Cassawa Waste

coconut

Coconut Husk

pale

Pale Fiber

corn

Corn Cobs

pale

Pale Bunch

pellet

Pellet

rick

Rick Husk

sawdust

Sawdust

Common Fuel Calorific Value List. Please click the button below for more information.

Online Inquiry

APPLICATION INDUSTRIES

To Provide customers with safe, reliable and high-quality industry and product solutions and related services.

Central Heating Boiler

Central Heating Boiler

Central Heating Boiler

More>>
Sugar Industry Boiler

Sugar Industry Boiler

Sugar Industry Boiler

More>>
Paper Processing Industry

Paper Processing Industry

Paper Processing Industry

More>>
Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

More>>

+

DETAILS
PRESERVATION

Dusting Settling Wing Wall ●

Dusting Settling Wing Wall

Automatic Fuel Hopper ●

Automatic Fuel Hopper

Threaded Pipe ●

Threaded Pipe

Large Diameter Drum ●

Large Diameter Drum

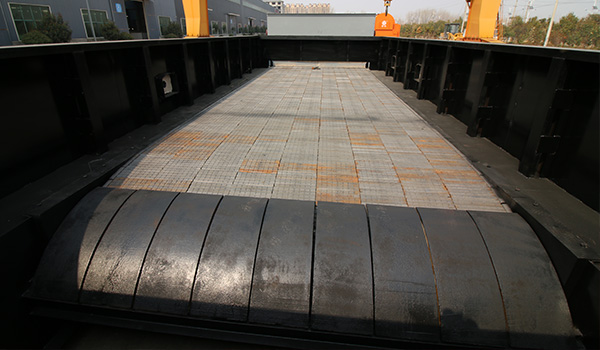

High Temperature Resistance Chain Grate ●

High Temperature Resistance Chain Grate

Concrete Pouring Furnace Wall ●

Concrete Pouring Furnace Wall

PERFORMANCE ADVANTAGES


1. It uses arched tube plate and thread smokestacks constituted into the drum,the drum structure is quasi-elastic instead of quasi-rigid,abrogates the braced pieces of tube plate area, reduces the stress.The fire tube inside of tube plate is single return

2. The ascension pipes arranged at the bottom of drum,this make the sludge not easy to deposit,the high temperature zone of drum easy to be cooling,prevent the drum bottom swelling.

3. It adopts efficient heat transfer threaded pipe,strengthened heat transfer,then heating-up and pressure boost -up quickly, thus increasing the thermal efficiency.

4. Compact structure, smaller size compared with the same type, saving the boiler foundation cost.

5. Stable operation, easy to adjust, strong steam output.

6. Both wing wall and outlet widow inside of the furnace have the function of dust suppression,that make the original dust concentration controlled under the standard,thus ensuring the soot discharge scratch the index stipulated by the State Environmental

7. The Unique double secondary air design improved the ignition conditions of biomass fuel, adopt the independent wind chamber to achieve the reasonable ventilation, and from a air dynamic field which is beneficial to burn in the chamber, achieve high com

TECHNICAL PARAMETERS


Model DZL0.7-0.7/95/70
DZL0.7-1.0/95/70
DZL1.4-0.7/95/70
DZL1.4-1.0/95/70
DZL2.8-0.7/95/70
DZL2.8-1.0/95/70
DZL4.2-1.0/95/70 DZL5.6-1.0/95/70
DZL5.6-1.25/95/70
Rated Thermal Power(MW) 0.7 1.4 2.8 4.2 5.6
Rated Pressure(Mpa) 0.7/1.0 0.7/1.0 0.7/1.0 0.7/1.0 1.0/1.25
Outlet Water Temperature(℃) 95 95 95 95 95
Return Water Temperature(℃) 70 70 70 70 70
Efficient Grate Area (m2) 2.22 4.1 5.85 7.95 9.75
Thermal Efficiency (%) 82 82 82 82 82
Note: Parameter is for reference only, if any changes should follow the actual drawing
