WDR New Type Electric Steam Boiler

Application:

Brewery Industry Boiler, Paper Processing Industry, Food & Beverage Industry Boiler

Capacity：0.1t/h-6t/h

Efficiency：0.4/0.7 MPa

Pressure：99%

Fuel：Electricity

LDR/WDR electric steam boiler makes the electrical control cabinet separate from boiler body to avoid affecting the boiler’s working life when the electrical elements become aging. The electrical heated tube can be used for about 20000 hours; its thermal efficiency could almost be 99% and will not release NOX to the air, it is environmental. The control system is PLC, with LCD screen, auto indicators, Chinese and English display, etc.

PERFORMANCE ADVANTAGES

All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.

High thermal efficiency. Low heat loss, the thermal efficiency could reach to 99%.

No pollution. Electric boiler could heat water directly, change electric power into thermal power, will not discharge exhaust gas and dust, protect environment.

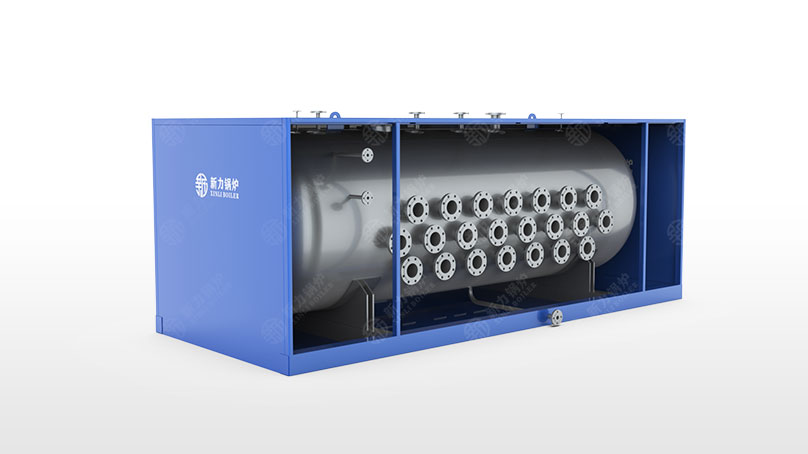

Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.

Large steam space and good quality steam.

High automatic degree, could decrease labor cost.

TECHNICAL PARAMETERS

Model	Rated Evaporation Capacity(t/h)	Rated Working Pressure(MPa)	Rated steam Temperature(C)	Thermal Efficiency(%)	Overall Dimension (mm)	Reference Weight(kg)
LDR0.1-0.4-D	0.1	0.4	151	99	1100×850×2600	615
LDR0.2-0.4-D	0.2	0.4	151	99	1200×960×2500	657
LDR0.3-0.4-D	0.3	0.4	151	99	1350×1120×2360	671
LDR0.4-0.4-D	0.4	0.4	151	99	1350×1120×2650	678
LDR0.5-0.4/0.7-D	0.5	0.4/0.7	151/170	99	1700×1200×2720	689
LDR0.7-0.4/0.7-D	0.7	0.4/0.7	151/170	99	2650×1850×1330	825
WDR1-0.7-D	1	0.7	170	99	2620×1360×1630	1179
WDR1.5-0.7-D	1.5	0.7	170	99	2840×1560×1830	1312
WDR2-0.7-D	2	0.7	170	99	3640×1760×2030	1450
Note: Parameter is for reference only, if any changes should follow actual drawings.
