Diesel/Heavy Oil/Furnace Oil Fired Boiler

Diesel/Heavy Oil/Furnace Oil Fired Boiler

WNS series diesel/heavy oil/furnace oil fired boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

This gas oil fire tube boiler is widely used for industry production and processing, such as textile mill, medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, moreover, it could be used for central heating in enterprise, hotel, hospital, civil architecture, etc.


Rated Evaporation Capacity


Working Pressure


Thermal Efficiency

LPG, NG, Diesel, Oil

Avaliable Fuel


To Provide customers with safe, reliable and high-quality industry and product solutions and related services.

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Brewery Industry Boiler

Brewery Industry Boiler

Brewery Industry Boiler

Pharmaceuticals Industry

Pharmaceuticals Industry

Pharmaceuticals Industry

Textile Industry Boiler

Textile Industry Boiler

Textile Industry Boiler

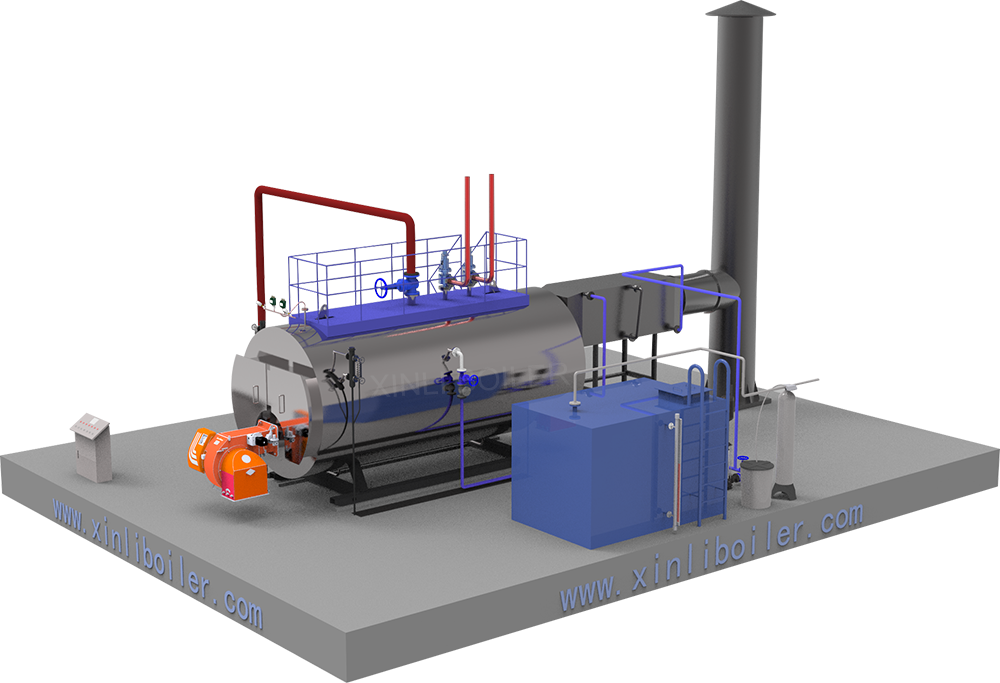

Water Level Gauge ●

Water Level Gauge

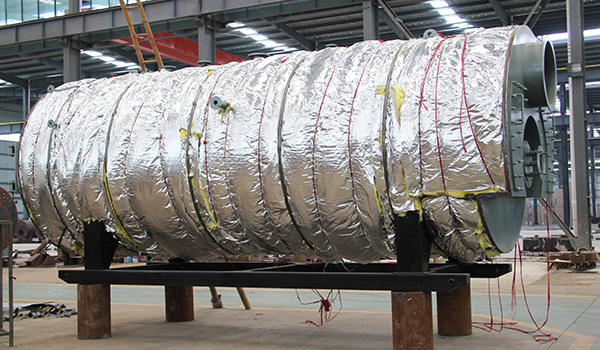

Insulating Layer ●

Insulating Layer

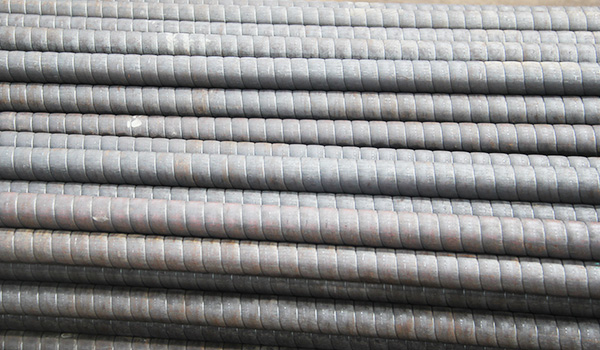

Threaded pipe ●

Threaded pipe

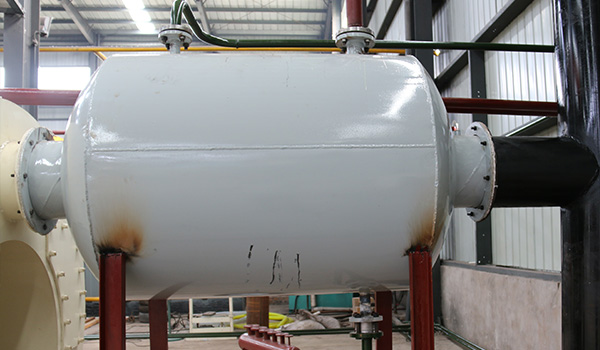

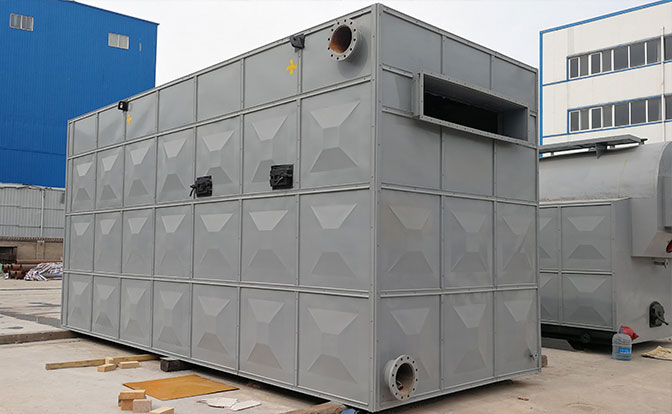

Economizer ●

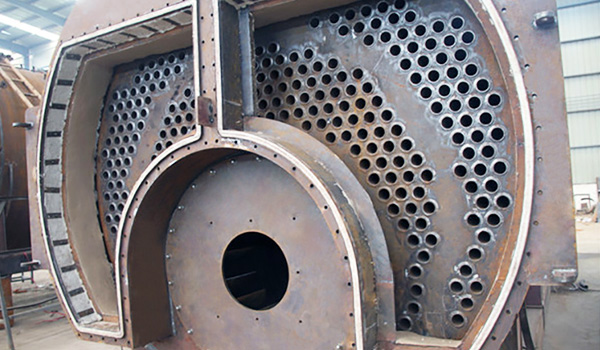

Smoke Chamber  ●

Smoke Chamber

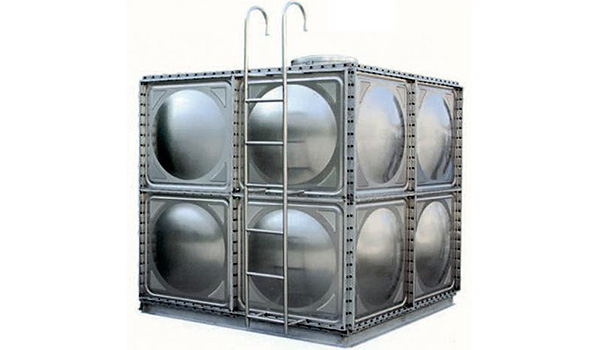

Water Tank ●

Water Tank

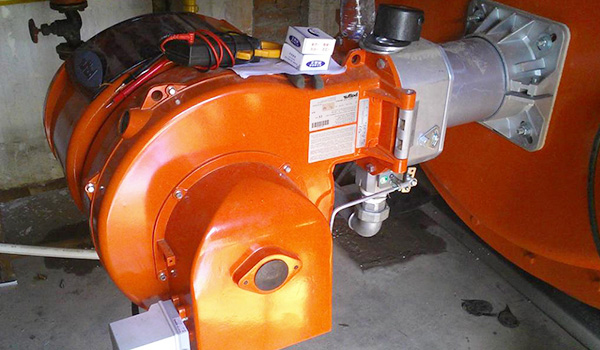

High Efficiency Burner ●

High Efficiency Burner

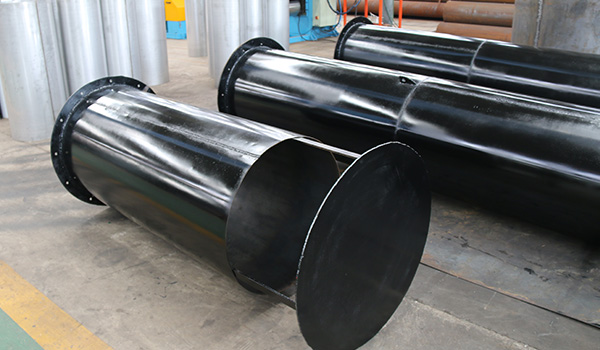

Chimney ●

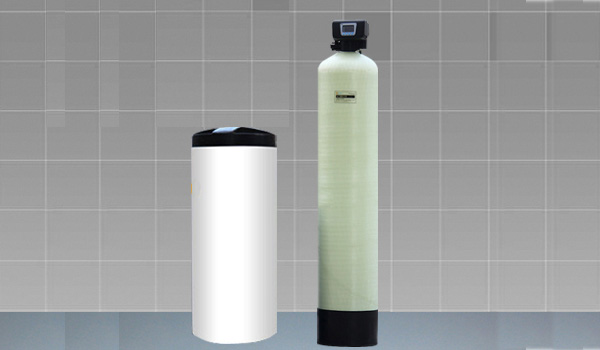

Water Sofetener ●

Water Sofetener


1. High Combustion Efficiency

Equipped with high quality and reliable international brand burner, the fuel could burn sufficiently, high combustion efficiency, low harmful gas emission and noiseless operation.

2. Large Diameter Furnace

Adopts horizontal type three pass structure and large diameter corrugated furnace. Large combustion space, the fuel could burn sufficiently. The large radiant heating surface to ensure the high thermal efficiency.

3. Unique Seal of Front and Rear Smoke Box

The smoke box is double door design, open conveniently. It uses multistage labyrinth seal technology, the seal material is special, has good compressibility, no smoke leakage.

4. Multi-function Safety Equipment

Equipped with explosion proof equipment at the back of boiler, prevent deflagration in furnace, discharge high energy, and automatic reset as well, to ensure the boiler operate safety and efficiently.

5. Good Heat Preseration Effect

The boiler shell use aluminium silicate board for heat preservation, the thickness of board is 8cm, high thermal shielding efficiency but low heat loss, to increase the boiler thermal efficiency.

6. Full Automatic Interlock Protection Program

has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.,to ensure boiler safe operation.

7. Economizer

Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency could be increased to as high as 98%.


Model Rated Evaporation Capacity
Rated Pressure
Thermal Efficiency
Fuel Consumption Overall Dimension of biggest part for transfortation (m) Weight of
biggest part for transporation (t)
Light Oil (Kg/h) NG
WNS1-0.7/1.0-Y(Q) 1 0.7/1.0 >90 66.5 75 3.6×2.0×2.0 4
WNS2-1.0/1.25-Y(Q) 2 1.0/1.25 >90.2 133 150 4.8×2.5×2.46 8
WNS4-1.0/1.25-Y(Q) 4 1.0/1.25 >91 266 300 5.8×2.85×2.8 13
WNS6-1.0/1.25-Y(Q) 6 1.25/1.6 >91.5 399 450 7.25×3.1×3.15 19
WN8-1.0/1.25-Y(Q) 8 1.25/1.6 >91.6 532 600 7.45×3.26×3.2 22.6
WNS15-1.0/1.25-Y(Q) 15 1.25/1.6 >91.8 997 1125 8.7×3.7×3.5 34
WNS20-1.0/1.25-Y(Q) 20 1.25/1.6 >92 1204 1418 10×3.6×4.0 45
Note: Parameter is for reference only, if any changes should follow the actual drawing
