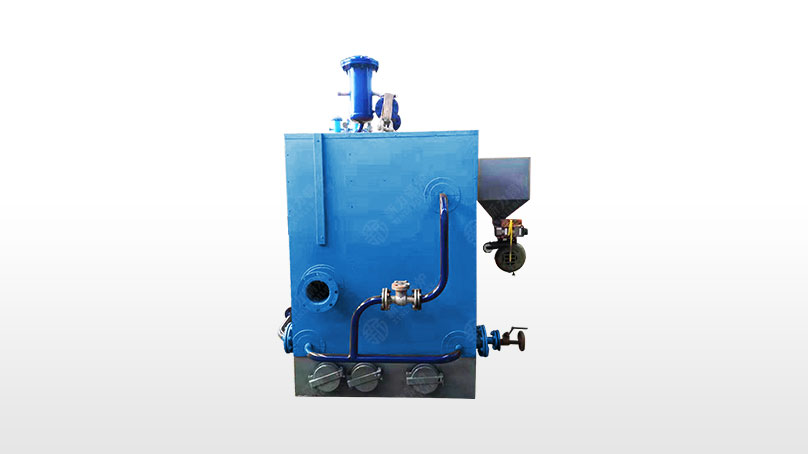

Oil/Gas Fired Steam Generator

Application:

Brewery Industry Boiler, Paper Processing Industry, Food & Beverage Industry Boiler

Capacity：0.2~2t/h

Efficiency：0.4~0.7Mpa

Pressure：92%~94%

Fuel：Diesel,Natural Gas, LPG, etc

Oil/gas steam generator is full Automatic operating, has the characterietic of high efficiency and energy saving, environmental protection, steam continuous and stable output, high steam purity, complete set delivery, convenient and simple. The steam generator output saturated steam fast, inside steam storage room large & steam enough, matched import burner, no pollution, low- emission.

PERFORMANCE ADVANTAGES

Skid- Mounted

Skid-Mounted Type , installation and commission simple & convenient . No need make foundation , can directly running after connect water & electric supply . Save the room space and investment for user.

Output Steam Fast & High Steam Quality

After 4 to 5 minutes ignition , then can got enough pressured steam output And it is applicable for the condition of on-off operation ,can provide steam quickly and timely.

High Automatically

Automatically control combustion ,steam pressure and water level , ensure safe and economical operation.

High Efficiency & Sufficient Output

The boiler heating area is sufficient ,fully absorb the effective heat, the exhaust flue gas temperature is low, thermal loss is low, thus it can have sufficient heating and big radiation heating surface.

Environmental Protection

The boiler running quiet, no noise, and combustion stable, completely comply with the environmental protection standard.

TECHNICAL PARAMETERS

Model	FTSG0.2-0.4-YQ	FTSG0.3-0.7-YQ	FTSG0.5-0.7-YQ	FTSG0.7-0.7-YQ	FTSG01.5-0.7-YQ
Rated Steam Capacity (t/h)	0.2	0.3	0.5	0.7	1.5
Rated Steam Pressure (Mpa)	0.4	0.7	0.7	0.7	0.7
Rated Steam Temperature (℃)	150	170	170	170	170
Test Efficiency (%)	92-94	92-94	92-94	92-94	92-94
Electric Consumption (KW)	1	1	1.25	3.5	4.5
Natural Gas Consumption (Nm³/h)	15-20	18-28	25-35	31-58	80-105
Transportation Dimension (LWH) mm	150012502100	200019002500	225025502800	240026003000	240026203000
Voltage	380V 50HZ
Regulation Model	Automatic
