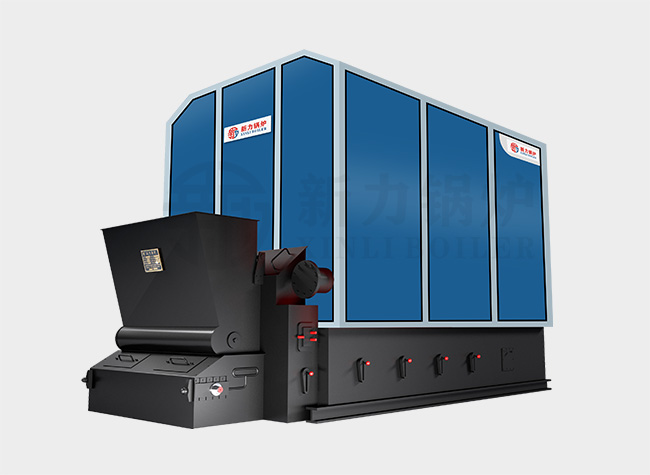

Xinli organic heat carrier furnace YLW biomass heat conduction oil furnace

2020-12-28 10:08    page view:

Guide: YLW biomass-fired organic heat carrier furnace is a new type of heating equipment. It uses coal and biomass as fuels and flue gas as heat sources, and uses heat transfer oil as the heat carrier to force the heat carrier to circulate in the liquid phase through a circulating oil pump to transport heat After the heating equipment is supplied, it is returned to the heating furnace to reheat the high temperature, low pressure, energy-saving equipment. The heating temperature can reach 350℃, but generally the working pressure is below 1.0MPa, because it works in the liquid phase, which is safe and reliable.

  YLW biomass-fired organic heat carrier furnace It is a new type of heating equipment, using coal and biomass as fuel and flue gas as heat source, using heat transfer oil as the heat carrier to force the heat carrier to circulate in the liquid phase through a circulating oil pump, and transfer the heat to the heating equipment before returning The high-temperature, low-pressure, energy-saving equipment reheated by the heating furnace, the heating temperature can reach 350 ℃, and the working pressure is generally below 1.0 MPa, because it works in the liquid state, which is safe and reliable.

  Organic heat carrier furnace It can replace the steam boiler for heating and improve productivity. Xinli organic heat carrier furnace is widely used in petrochemical industry, oil industry, synthetic fiber industry, textile ignition industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food industry, electrical equipment industry, coking industry, washing

  1. Strong fuel adaptability. The combustion equipment and the furnace body are designed separately, and the furnace can be designed separately according to the different properties of the solid fuel.

   2. Equipped with fully automatic chain grate to save labor costs.

  3. The boiler combustion chamber is composed of chain grate and front and rear arches, chain grate and front and rear arches, with sufficient fuel combustion space, complete combustion and high thermal efficiency.

  4. The radiant section is made of a square tube, and the convection section is made of a serpentine tube. The heating surface tube has good thermal expansion performance, low stress, safe and reliable.

  5. The temperature adjustment is accurate and reliable, equipped with complete operation control and safety monitoring devices, with high automation and low labor intensity.

  6. Energy saving and consumption reduction. Compared with steam heating, it can save energy by 1 to 1.5 times, and compared with electric heating, it can save energy by 0.8 to 1.3 times, which saves significant operating costs.

  7. Biomass fuel has a wide range of sources, is a renewable green energy, and has low fuel costs, which greatly reduces operating costs.

xinli boiler It is located in Kaifeng, a national historical and cultural city, with a simple and elegant environment and convenient transportation. The company covers an area of more than 20,000 square meters; it has more than 200 production and testing equipment such as automatic plate bending machines, large pipe benders, CNC longitudinal and circumferential seam welders, CNC cutting machines, drilling machines, and imported non-destructive flaw detection machines. Xinli Boiler is committed to the field of thermal energy, and persistently develops new power station boilers and industrial boiler fluidized bed boilers, oil-fired gas boilers, coal/biomass chain boilers, waste heat boilers, and heat conduction oil furnaces. In addition, Xinli Boiler has the latest computer-aided design system for product development, sophisticated production equipment, professional technical engineer team, strict quality system and perfect service system, from incoming inspection, production process, factory inspection, etc. Each process is checked at various levels to ensure high-quality products and services.
