Guide: Xinli SZL20 biomass-fired steam boiler was exported to Thailand for an alcohol factory, providing stable steam for fermentation and distillation. It features high efficiency, energy saving, environmental protection and reliable operation.
I. Project Background: Stable Steam Demand for Alcohol Factory in Thailand
The customer is a large-scale alcohol production enterprise in Thailand, mainly engaged in industrial alcohol, fuel ethanol and beverage alcohol manufacturing. The enterprise must strictly comply with Thailand’s industrial environmental protection standards, boiler emission regulations and food-grade safety requirements. With the expansion of production capacity, the customer’s original boiler equipment could not meet the large-scale continuous steam demand, and the main pain points are as follows:
The old boiler had small evaporation capacity and low thermal efficiency, failing to provide stable and continuous high-pressure steam required for alcohol fermentation, distillation, sterilization and heating processes;
The traditional fuel boiler had high operation cost and large emission, which could not meet Thailand’s increasingly strict environmental protection policies;
The customer hoped to use local biomass fuel (bagasse, wood chips, agricultural waste) to reduce energy cost and realize green and low-carbon production.

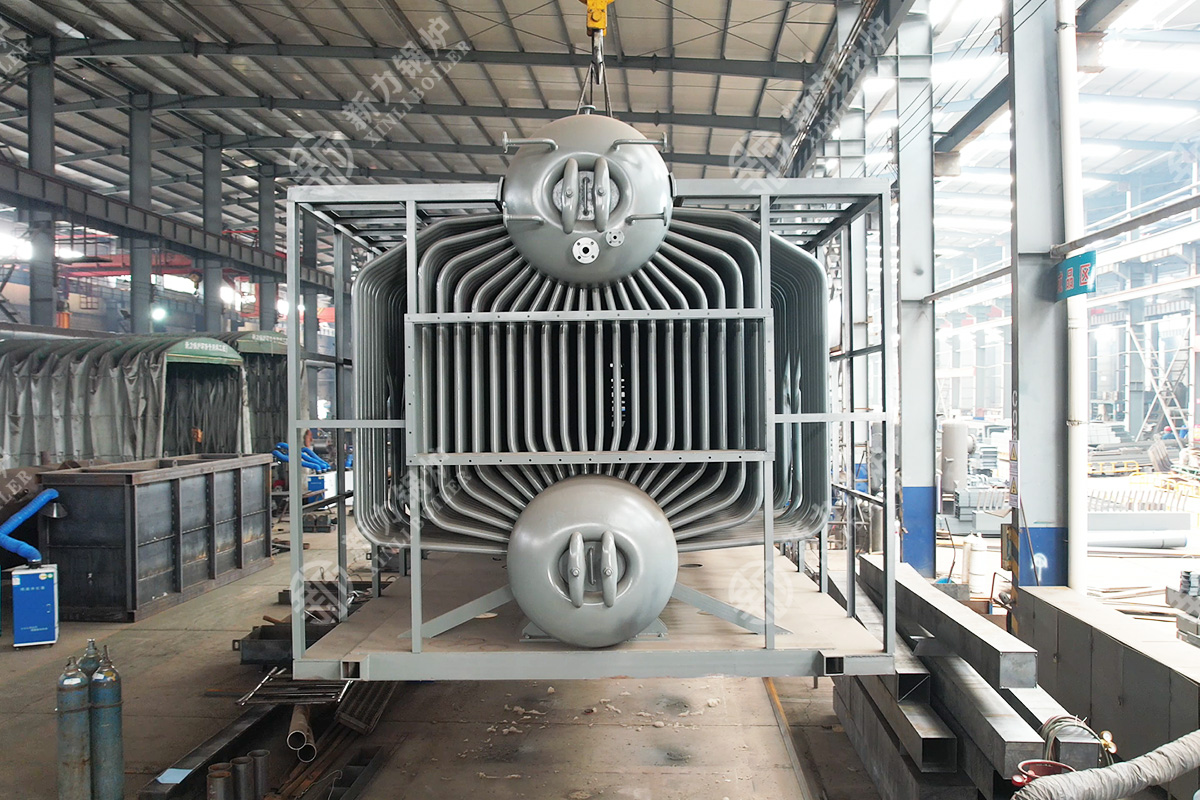

Xinli SZL20 biomass-fired steam boiler features large evaporation capacity, sufficient combustion, stable operation and strong fuel adaptability, which is widely used in alcohol, chemical, food and bioenergy industries. After multiple comparisons and technical evaluations, the customer finally chose Xinli Boiler to provide a full set of customized steam system solution.
II. Customized Solution: Core Advantages of SZL20 Biomass-Fired Steam Boiler
Combined with Thailand’s tropical climate, abundant biomass fuel resources and the continuous production characteristics of alcohol factories, Xinli’s technical team optimized the SZL20 biomass boiler to ensure high efficiency, energy saving and environmental protection. The core advantages are as follows:
Large Evaporation Capacity & Stable Steam Supply: Rated evaporation capacity of 20 tons per hour, rated pressure of 1.25MPa, stably outputting high-quality saturated steam to fully meet the 24-hour continuous steam demand of alcohol distillation, fermentation and sterilization.
Strong Biomass Fuel Adaptability: Optimized furnace structure and grate design, suitable for various local biomass fuels such as bagasse, wood chips, rice husk and agricultural residues, with full combustion and no coking.
High Thermal Efficiency & Low Operation Cost: Thermal efficiency ≥ 88%, which greatly reduces fuel consumption compared with traditional boilers. Using local low-cost biomass fuel can significantly reduce the enterprise’s energy cost.
Environmental Protection & Emission Compliance: Equipped with high-efficiency dust removal and desulfurization system, flue gas emissions fully meet Thailand’s industrial boiler environmental standards, green and pollution-free.
Safe, Reliable & Long Service Life: Adopting double-drum longitudinal chain grate structure, strong rigidity, stable operation, low failure rate, equipped with complete safety protection devices to ensure long-term continuous operation.
Adapted to Tropical Climate: Optimized heat dissipation and ventilation design, suitable for Thailand’s high-temperature and humid environment, stable operation all year round.
Intelligent Control & Easy Operation: PLC automatic control system, realizing automatic ignition, automatic feeding, automatic slag removal and constant pressure operation, reducing labor cost.
