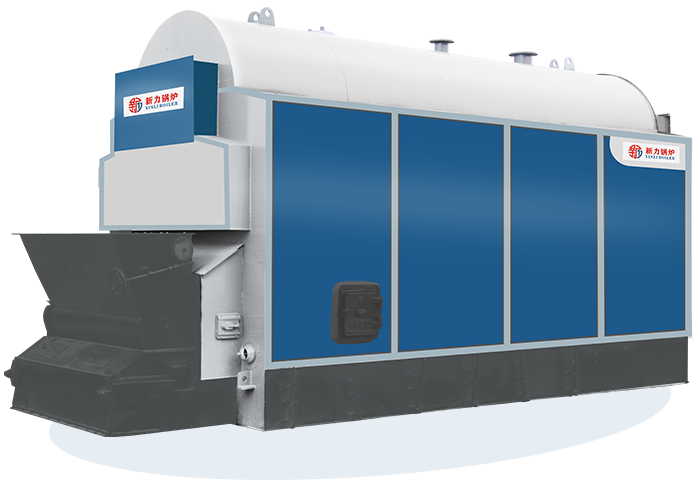

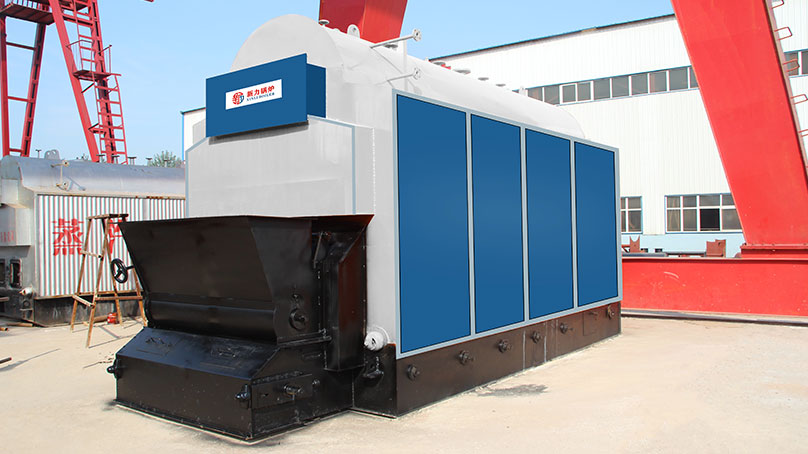

DZL Coal Fired Chain Grate Steam Boiler

DZL Coal Fired Chain Grate Steam Boiler

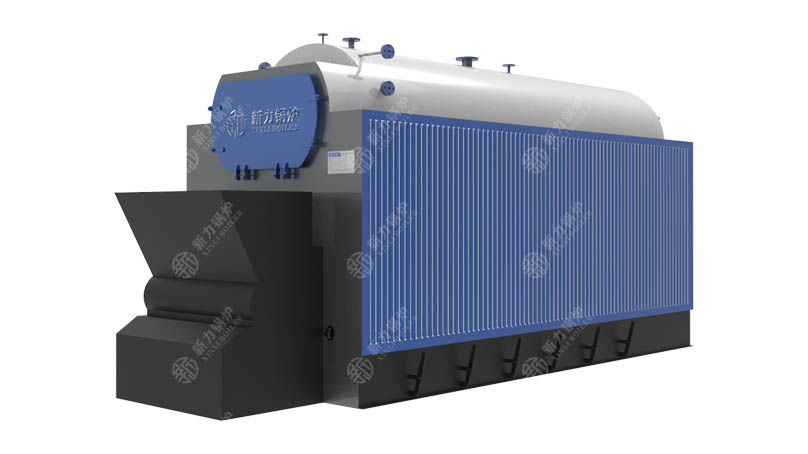

DZL series coal fired boiler is single drum water tube and fire tube boiler, combustion equipment is chain grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating area. This boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The drum is welded assembly by cylinder and front back tube plate. This furnace structure in reasonable arrangement and high efficiency. This series boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission requirement.

This boiler uses the new scientific achievement, such as arch tube plate, screw fire tube to solve the problem of tube plate flaw, water wall tube explosion, low efficiency, insufficient output, poor adaptability of coal, improve the heat transfer.

1 ~ 10 t/h

Rated Evaporation Capacity

< 1.6 Mpa

Working Pressure

> 82%

Thermal Efficiency

Coal, Biomass

Avaliable Fuel

APPLICATION INDUSTRIES

To Provide customers with safe, reliable and high-quality industry and product solutions and related services.

Paper Processing Industry

Paper Processing Industry

Paper Processing Industry

More>>
Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

More>>
Textile Industry Boiler

Textile Industry Boiler

Textile Industry Boiler

More>>
Chemical Industry Boiler

Chemical Industry Boiler

Chemical Industry Boiler

More>>

+

DETAILS
PRESERVATION

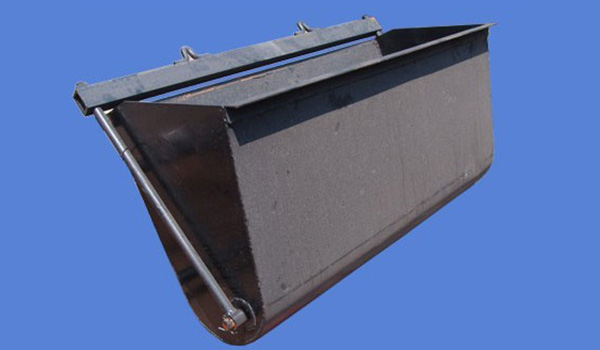

Dusting Settling Wing Wall ●

Dusting Settling Wing Wall

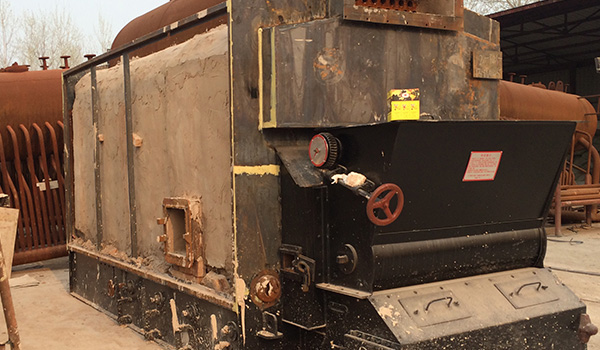

Automatic Fuel Hopper ●

Automatic Fuel Hopper

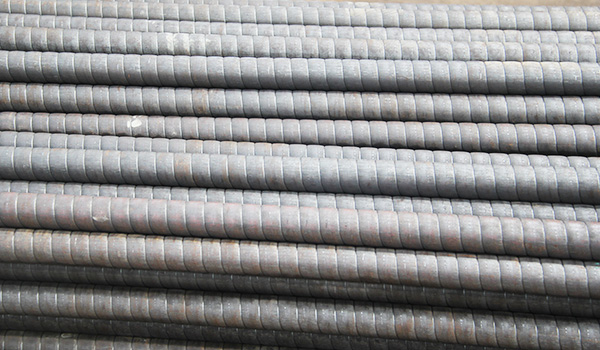

Threaded Pipe ●

Threaded Pipe

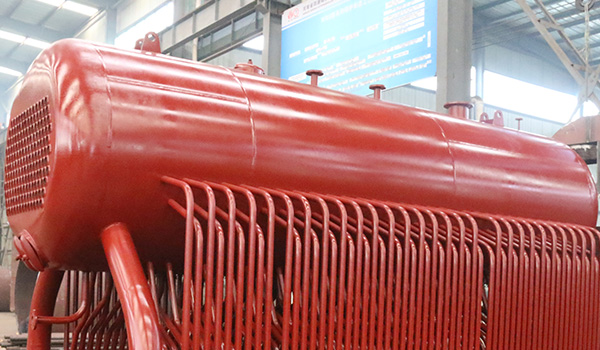

Large Diameter Drum ●

Large Diameter Drum

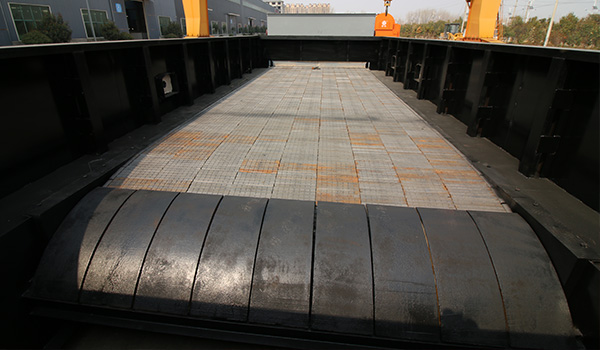

High Temperature Resistance Chain Grate ●

High Temperature Resistance Chain Grate

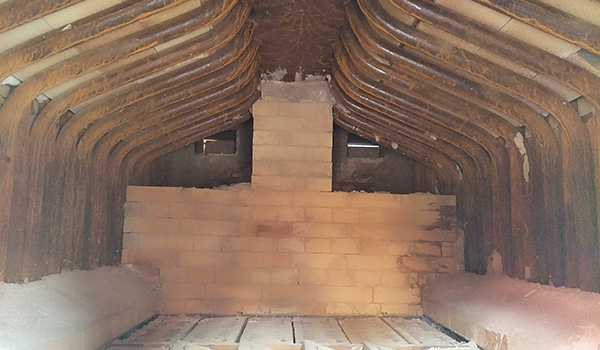

Concrete Pouring Furnace Wall ●

Concrete Pouring Furnace Wall

PERFORMANCE ADVANTAGES


1. It uses arched tube plate and thread smokestacks constituted into the drum,the drum structure is quasi-elastic instead of quasi-rigid,abrogates the braced pieces of tube plate area, reduces the stress.The fire tube inside of tube plate is single return

2. The ascension pipes arranged at the bottom of drum,this make the sludge not easy to deposit,the high temperature zone of drum easy to be cooling,prevent the drum bottom swelling.

3. It adopts efficient heat transfer threaded pipe,strengthened heat transfer,then heating-up and pressure boost -up quickly, thus increasing the thermal efficiency.

4. Compact structure, smaller size compared with the same type, saving the boiler foundation cost.

5. Stable operation, easy to adjust, strong steam output.

6. Both wing wall and outlet widow inside of the furnace have the function of dust suppression,that make the original dust concentration controlled under the standard,thus ensuring the soot discharge scratch the index stipulated by the State Environmental

TECHNICAL PARAMETERS


Model Rated Evaporation Capacity (t/h) Rated Pressure(MPa) Rated Steam Temperatrue(℃) Inlet Water Temperature(℃) Overall Dimension of biggest part for transfortation  L*W*H(mm)
DZL1-0.7/1.0/1.25-AII 1 0.7/1.0/1.25 170/184/194 20 5100×2200×3000
DZL2-0.7/1.0/1.25- AII 2 0.7/1.0/1.25 170/184/194 20 5500×2300×3300
DZL4-1.25/1.6- AII 4 1.25/1.6 194/204 20 6600×2600×3600
DZL6-1.25/1.6- AII 6 1.25/1.6 194/204 20 7500×2900×3800
DZL8-1.25/1.6- AII 8 1.25/1.6 194/204 20 8100×3100×3800
DZL10-1.25/1.6- AII 10 1.25/1.6 194/204 70 7700×3200×3600 8600×3000×2600
DZL15-1.6/2.5- AII 15 1.6/2.5 204/226 70 10000×3240×3540 12000×3200×30800
DZL20-1.25/1.6- AII 20 1.6/2.5 204/226 70 11000×3240×3540 14000×3200×30800
Note: Parameter is for reference only, if any changes should follow the actual drawing
