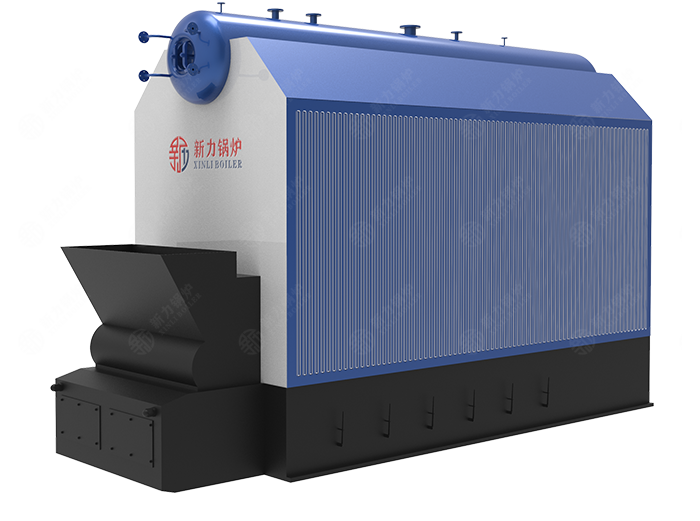

SZL Economizer Type Coal Fired Chain Grate Boiler

SZL Economizer Type Coal Fired Chain Grate Boiler

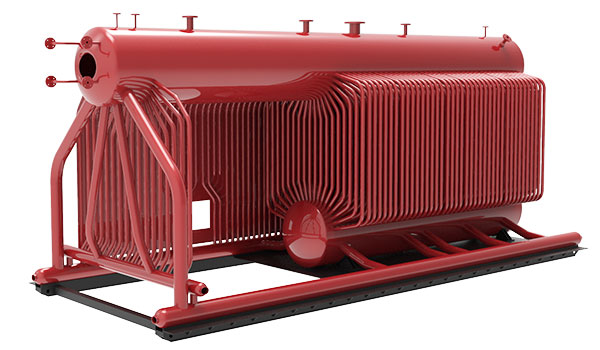

SZL double drum water tube steam boiler is horizontal type water tube boiler, the combustion equipment is chain grate. The boiler adopts fast assembly or packaged assembly structure, boiler with steam capacity lower than 4t/h is fast assembly water tube structure, boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heated part) and lower part (combustion equipment). The wood fired hot water boiler has the advantages of compact structure, high steam quality, sufficient output, operate convenient and environmental protection.

2t/h ~ 30t/h

Rated Evaporation Capacity

< 1.6 Mpa

Working Pressure

> 82%

Thermal Efficiency

Coal, Biomass

Avaliable Fuel

APPLICATION INDUSTRIES

To Provide customers with safe, reliable and high-quality industry and product solutions and related services.

Paper Processing Industry

Paper Processing Industry

Paper Processing Industry

More>>
Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

More>>
Pharmaceuticals Industry

Pharmaceuticals Industry

Pharmaceuticals Industry

More>>
Textile Industry Boiler

Textile Industry Boiler

Textile Industry Boiler

More>>

+

DETAILS
PRESERVATION

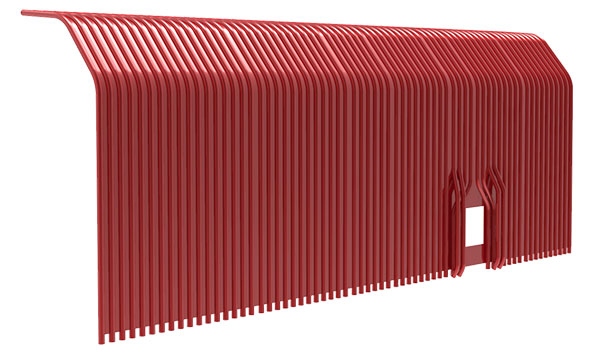

Membrane Water Wall ●

Membrane Water Wall

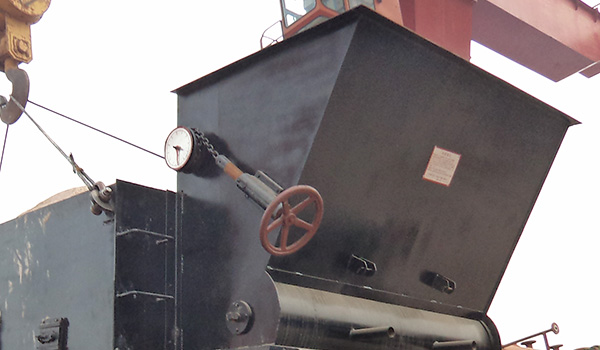

Automatic Fuel Hopper ●

Automatic Fuel Hopper

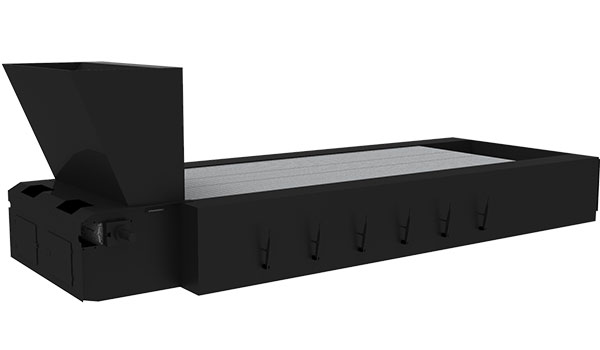

High Temperature Resistance Chain Grate ●

High Temperature Resistance Chain Grate

Large Diameter Double Drums ●

Large Diameter Double Drums

PERFORMANCE ADVANTAGES


1. Adopts horizontal type three pass structure and large furnace, to ensure the sufficient combustion. The large diameter double drums increase the radiant heating surface, sufficient output and high thermal efficiency.

2. The furnace wall was poured entirely by the heat-resistance concrete and high-temperature-resistance refractory brick, excellent leakproofness, no air leakage, low heat loss.

3. The boiler is equipped with automatic chain grate, decrease labor cost. The chain grate has a low coal leakage because of the small gap.

4. Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, increase the thermal efficiency.

5. The boiler absorb the advantage of the fast assembly, compact structure, the boiler room is the single layer layout, convenient for installation , has short installation period and low cost.

TECHNICAL PARAMETERS


Model Rated Evaporation
Capacity (t/h)
Rated
Pressure
(MPa)
Steam
Temperature
(℃)
Inlet/Returen Water Temperature(℃) Overall Dimension of biggest part for transfortation
L*W*H(mm)
SZL2-0.8/1.0/1.25/1.6/2.5-AII 2 0.8/1.0/1.25/1.6/2.5 175/184/194/204/226 20/70 5500×2350×3650
SZL4-1.0/1.25/1.6/2.5-AII 4 1.0/1.25/1.6/2.5 184/194/204/226 20/70 7730×2360×3520
SZL6-1.0/1.25/1.6/2.6-AII 6 1.0/1.25/1.6/2.5 184/194/204/226 20/70 up 6150×2840×3540 down 7275×2852×2580
SZL8-1.0/1.25/1.6/2.7-AII 8 1.0/1.25/1.6/2.5 184/194/204/226 20/70 up 6971×2933×3540 down 8056×2945×2580
SZL10-1.0/1.25/1.6/2.8-AII 10 1.0/1.25/1.6/2.5 184/194/204/226 20/70 up 7855×3240×3540 down 9025×3200×2580
SZL15-1.0/1.25/1.6/2.9-AII 15 1.0/1.25/1.6/2.5 184/194/204/226 20/70 Up 10000×3240×3540 down 12000×3200×3080
SZL20-1.0/1.25/1.6/2.10-AII 20 1.0/1.25/1.6/2.5 184/194/204/226 20/70 up 11000×3240×3540 down 14000×3200×3080
Note: Parameter is for reference only, if any changes should follow the actual drawing
