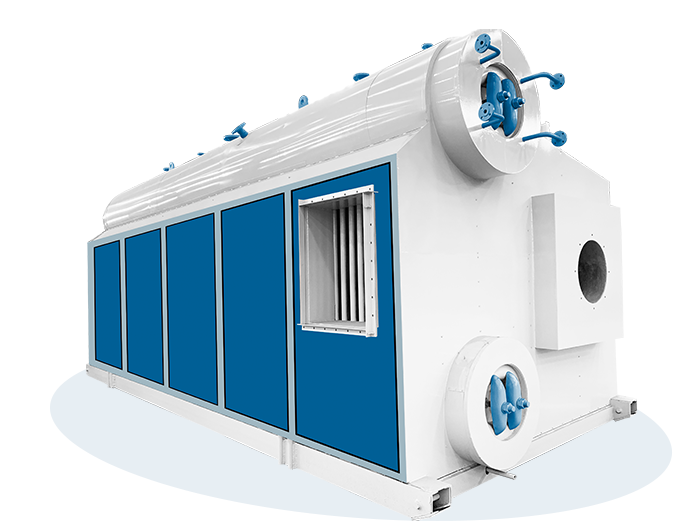

SZS Oil Gas Water Tube Hot Water Boiler

SZS Oil Gas Water Tube Hot Water Boiler

SZS oil gas water tube hot water boiler is arranged as drum longitudinal type “D” shape, the right side is furnace, the left side is convection bundle, has the characteristics of high steam quality, sufficient output, and high thermal efficiency (97%), etc.

The structure of furnace water cooling wall and convection gas pass is membrane wall, have good sealability, and effectively reduce refractory brick quantity and maintenance workload. The layout of economizer at boiler tail could effectively reduces exhaust gas temperature and improve boiler thermal efficiency. The boiler could equipped with extra-low NOx emission burner, low pollution and operate quietly.

4.2MW ~ 35MW

Rated Thermal Power

1.0/1.25/1.6 MPa

Working Pressure

92%~98%

Thermal Efficiency

LPG, NG, Diesel, Oil

Avaliable Fuel

APPLICATION INDUSTRIES

To Provide customers with safe, reliable and high-quality industry and product solutions and related services.

Central Heating Boiler

Central Heating Boiler

Central Heating Boiler

More>>
Brewery Industry Boiler

Brewery Industry Boiler

Brewery Industry Boiler

More>>
Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

Food & Beverage Industry Boiler

More>>
Pharmaceuticals Industry

Pharmaceuticals Industry

Pharmaceuticals Industry

More>>

+

DETAILS
PRESERVATION

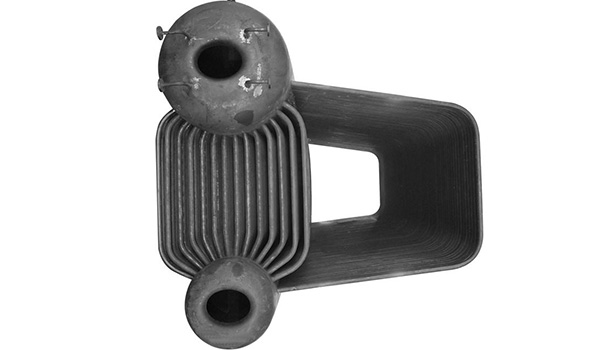

D Type Structure ●

D Type Structure

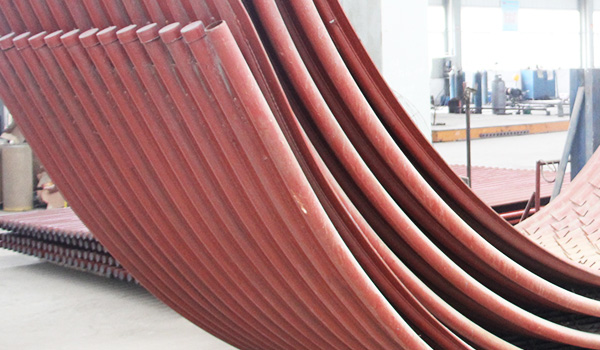

Membrane Water Wall ●

Membrane Water Wall

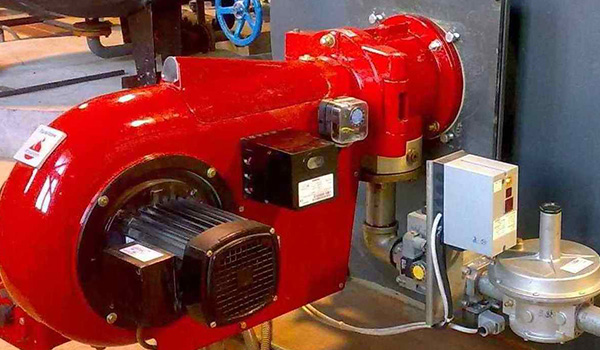

Full Automatic Burner ●

Full Automatic Burner

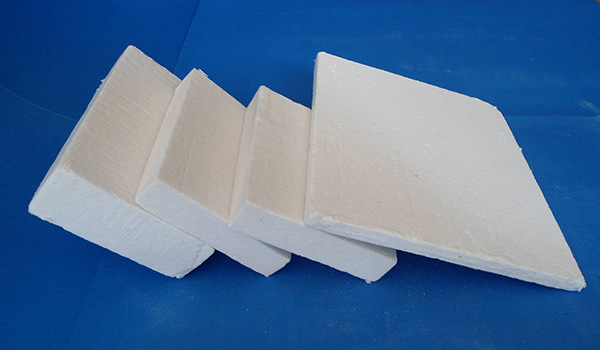

Aluminum Silicate Insulation ●

Aluminum Silicate Insulation

PERFORMANCE ADVANTAGES


1. Adopts double drums and “D” type layout, large radiant heating surface, and achieves higher thermal efficiency.

2. Uses membrane wall structure, has good sealability, could decrease the usage and maintenance load of insulation and refractory materials.

3. Equipped with full automatic burner with ignition control program, high combustion efficiency, low harmful gas emission, has the protect function of over-pressure and flame-out.

4. The boiler shell could use aluminium silicate board for heat preservation, the thickness of board is about 8cm, good insulation performance.

5. The layout of economizer at boiler tail could effectively reduces exhaust gas temperature and improve boiler thermal efficiency (reach to about 97%)

6. Equipped with two explosion door at the furnace roof, to ensure the boiler operate safety and efficiently.

7. There are manhole and inspection hole on the boiler, convenient for boiler internal installation, inspection and clean.

8. Full automatic interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

TECHNICAL PARAMETERS


Model Rated Thermal Efficiency
(MW)
Rated pressure
(Mpa)
Outlet Water Temperature
(℃)
Returen Water Temperature
(℃)
Fuel Consumption Overall Dimensionof biggest part for
transfortation L*W*H(m)
Weight of
biggest part for transporation (t)
Light Oil (kg/h) NG
(Nm³/H)
SZS7-1.0/115/70-Y(Q) 7 1.0 115 70 642 806 7.8×3.4×3.34 36.7
SZS10.5-1.0/115/70-Y(Q) 10.5 1.0 115 70 963 1137 7.1×3.66×3.5 39
SZS14-1.25/115/70-Y(Q) 14 1.25 115 70 1284 1551 10.2×6.6×4.8 46.2
SZS21-1.25/130/70-Y(Q) 21 1.25 130 70 1922 2322 12.3×7×5.4 57.2
SZS46-1.6/130/70-Y(Q) 46 1.6 130 70 4203 4923 15.6×9.4×7.8 /
SZS70-1.6/130/70-Y(Q) 70 1.6 130 70 6396 7753 15.9×8.7×8.9 /
Note: Parameter is for reference only, if any changes should follow the actual drawing
