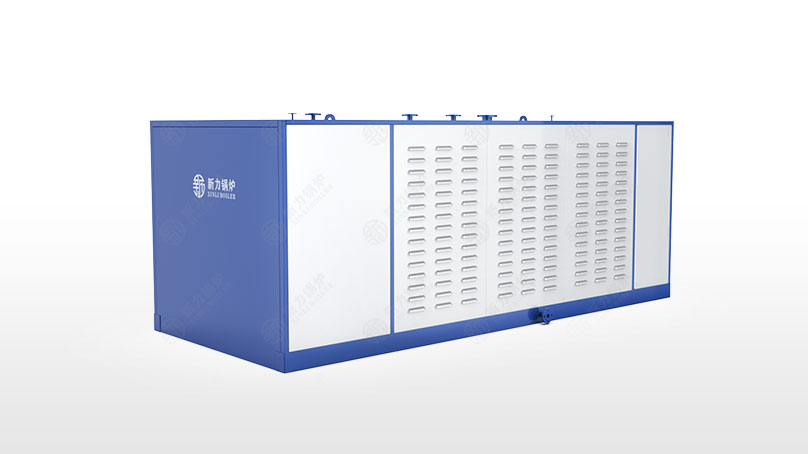

LDR/WDR electric steam boiler makes the electrical control cabinet separate from boiler body to avoid affecting the boiler’s working life when the electrical elements become aging. The electrical heated tube can be used for about 20000 hours; its thermal efficiency could almost be 99% and will not release NOX to the air, it is environmental. The control system is PLC, with LCD screen, auto indicators, Chinese and English display, etc.
Steam Capacity
Working Pressure
Thermal Efficiency
Avaliable Fuel
To Provide customers with safe, reliable and high-quality industry and product solutions and related services.
All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.
High thermal efficiency. Low heat loss, the thermal efficiency could reach to 99%.
No pollution. Electric boiler could heat water directly, change electric power into thermal power, will not discharge exhaust gas and dust, protect environment.
Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.
Large steam space and good quality steam.
High automatic degree, could decrease labor cost.
| Model | Rated Evaporation Capacity(t/h) | Rated Working Pressure(MPa) | Rated steam Temperature(C) | Thermal Efficiency(%) | Overall Dimension (mm) | Reference Weight(kg) |
| LDR0.1-0.4-D | 0.1 | 0.4 | 151 | 99 | 1100×850×2600 | 615 |
| LDR0.2-0.4-D | 0.2 | 0.4 | 151 | 99 | 1200×960×2500 | 657 |
| LDR0.3-0.4-D | 0.3 | 0.4 | 151 | 99 | 1350×1120×2360 | 671 |
| LDR0.4-0.4-D | 0.4 | 0.4 | 151 | 99 | 1350×1120×2650 | 678 |
| LDR0.5-0.4/0.7-D | 0.5 | 0.4/0.7 | 151/170 | 99 | 1700×1200×2720 | 689 |
| LDR0.7-0.4/0.7-D | 0.7 | 0.4/0.7 | 151/170 | 99 | 2650×1850×1330 | 825 |
| WDR1-0.7-D | 1 | 0.7 | 170 | 99 | 2620×1360×1630 | 1179 |
| WDR1.5-0.7-D | 1.5 | 0.7 | 170 | 99 | 2840×1560×1830 | 1312 |
| WDR2-0.7-D | 2 | 0.7 | 170 | 99 | 3640×1760×2030 | 1450 |
| Note: Parameter is for reference only, if any changes should follow actual drawings. | ||||||
