Glass Furnace Flue Gas Waste Heat Boiler

Glass Furnace Flue Gas Waste Heat Boiler

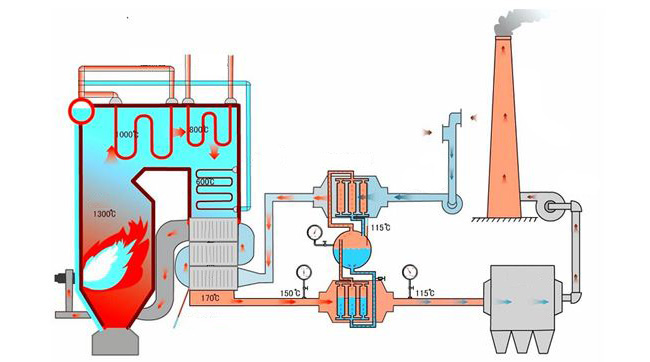

Glass furnace flue gas waste heat boiler is an equipment with the use of 600 ℃ flue gas in glass furnace for cogeneration or steam. By using the device, the heat production system can further improve heat utilization rate of more than 70%, the high temperature waste heat resource is fully recovered in the glass furnace.

Xinli Boiler has developed the double drum exhaust type of vertical natural circulation pipe waste heat boiler and the horizontal single-pipe waste heat boiler, long life, easy maintenance, economic security, reliable. This is fully applicable for float glass furnace production line with the use of heavy oil or natural gas.

3~35t/h

Rated Evaporation Capacity

0.2~2.5Mpa

Working Pressure

≧70%

Waste Heat Utilization Rate

Recovery of waste heat in glass factories

Application

APPLICATION INDUSTRIES

To Provide customers with safe, reliable and high-quality industry and product solutions and related services.

Chemical Industry Boiler

Chemical Industry Boiler

Chemical Industry Boiler

More>>
Pharmaceuticals Industry

Pharmaceuticals Industry

Pharmaceuticals Industry

More>>
Sugar Industry Boiler

Sugar Industry Boiler

Sugar Industry Boiler

More>>
Paper Processing Industry

Paper Processing Industry

Paper Processing Industry

More>>

+

DETAILS
PRESERVATION

PERFORMANCE ADVANTAGES


1. Low resistance

2.This boiler employs uniform velocity and low velocity design, to reduce the power consumption.

2. Long Working Life

This boiler is U-model structure, long life and simple maintenance.

3. Low Resistance

Large diameter centralized downcomer, guarantee water circulation safe and reliable, reduce resistance.

TECHNICAL PARAMETERS


Model Rated Evaporation Capacity (t/h) Rated Pressure (MPa) Steam Temperature (℃) Feed Water Temperature (℃)
Q10/450-1.3-1.25 1.3 1.25 194 20
QC45/372-4.7-1.35/310 4.7 1.35 310 104
Q120/530-8.6-0.8 8.6 0.8 175 104
Q96/480-13.2-2.3/430 13.2 2.3 430 150
Q100/510-14-2.6/420 14 2.6 420 104
Q108/500-15-0.7 15 0.7 170 20
Q110/510-16.4-2.4/430 16.4 2.4 430 138
Q145/510-21.2-2.6/430 21.2 2.6 430 138
Note: Xinli Boiler could customize design the waste heat recovery boiler based on the actual demand

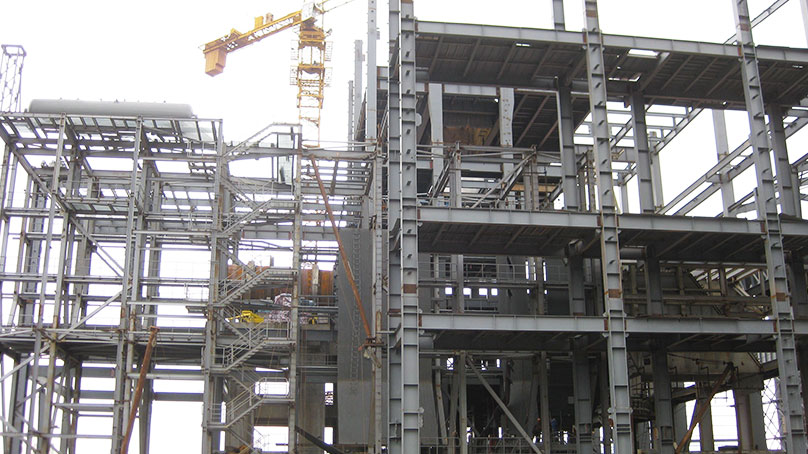

CASE
